Roof-mounted luggage rack

Note

Roof racks are available as special accessories.

Attachment

Follow the installation instructions of the roof rack.

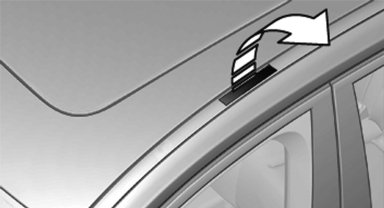

Roof drip rail with flaps

The anchorage points are located in the roof drip

The anchorage points are located in the roof drip rail above the doors.

Fold the cover outward.

Loading

Because roof racks raise the vehicle's center of gravity when loaded, they have a major effect on vehicle handling and steering response.

Therefore, note the following when loading and driving:

▷ Do not exceed the approved roof/axle loads and the approved gross vehicle weight.

▷ Distribute the roof load uniformly.

▷ The roof load should not be too large in area.

▷ Always place the heaviest pieces on the bottom.

▷ Secure the roof luggage firmly, e.g., tie with ratchet straps.

▷ Drive smoothly. Avoid sudden acceleration and braking maneuvers. Take corners gently.
