Arming and disarming the alarmsystem
General information
When you lock or unlock the vehicle, either with the remote control, Comfort Access or at the door lock the alarm system is armed or disarmed at the same time.
Door lock and armed alarm system
Unlocking via the door lock will trigger the alarm on some country-specific versions.
In order to terminate this alarm, unlock vehicle with the remote control or switch on the ignition, if necessary, by emergency detection of the remote control.
Tailgate and armed alarm system
The tailgate can be opened using the remote control, even if the alarm system is armed.
Press the button on the remote
control
for approx. 1 second.
After the tailgate is closed, it is locked and monitored again by the alarm system. The hazard warning system flashes once.
In some vehicle equipment variants, the tailgate can only be opened using the remote control if the vehicle was unlocked first.
Panic mode
Press the button on the remote
control
for at least 3 seconds.
Switching off the alarm
► Unlock the vehicle using the remote control.
► With Comfort Access: if you are carrying the
remote control with you, pull on the door
handle.

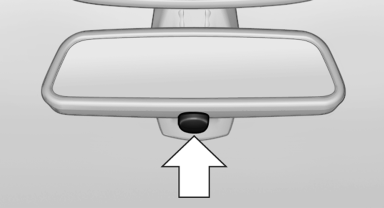

Indicator lamp on the interior rearview mirror
► The indicator lamp flashes briefly every 2 seconds:
The system is armed.
► The indicator lamp flashes after locking:
The doors, hood or tailgate is not closed properly, but the rest of the vehicle is secured.
After 10 seconds, the indicator lamp flashes continuously. Interior motion sensor and tilt alarm sensor are not active.
► The indicator lamp goes out after unlocking:
The vehicle has not been tampered with.
► The indicator lamp flashes after unlocking until the engine is started, but no longer than approx. 5 minutes:
An alarm has been triggered.
